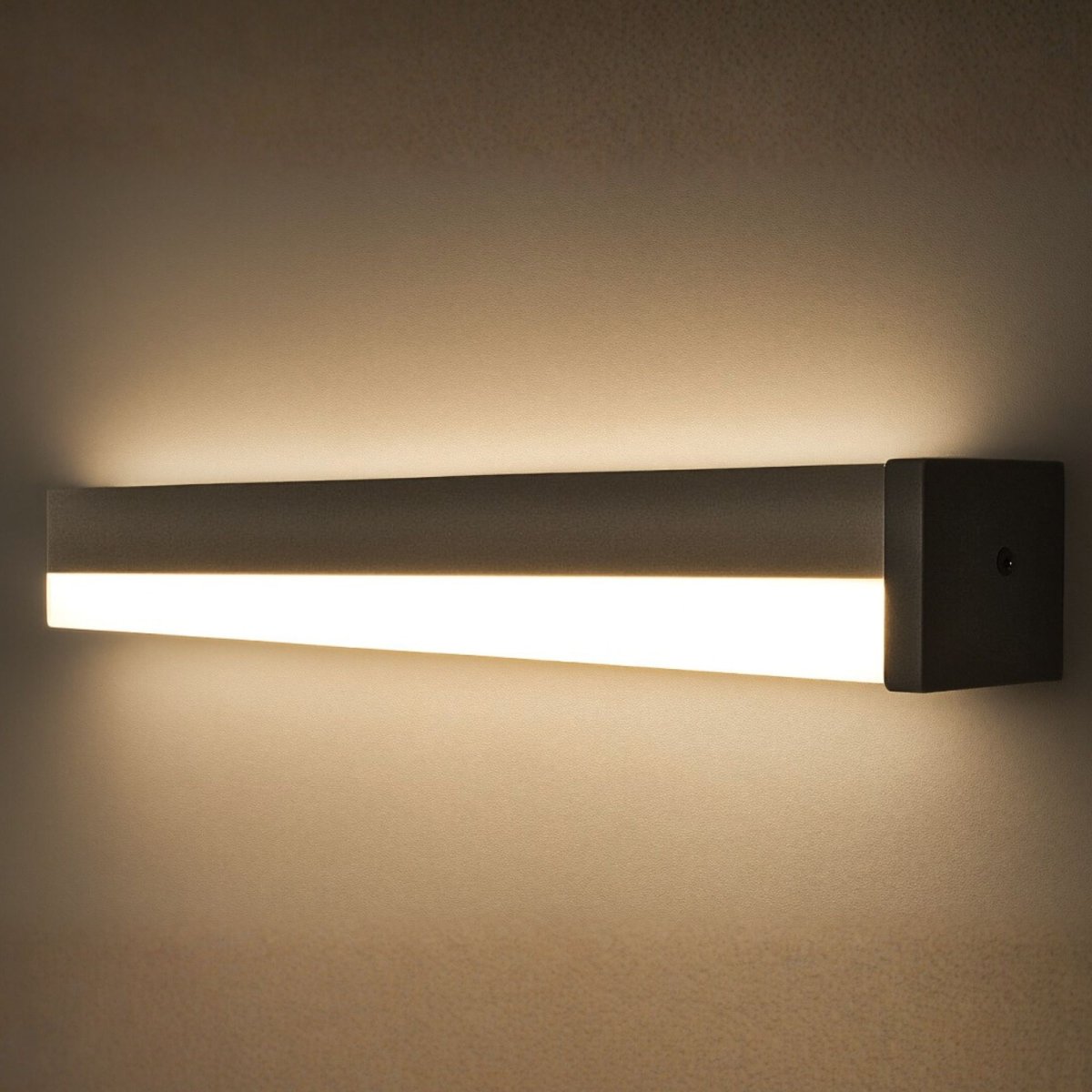

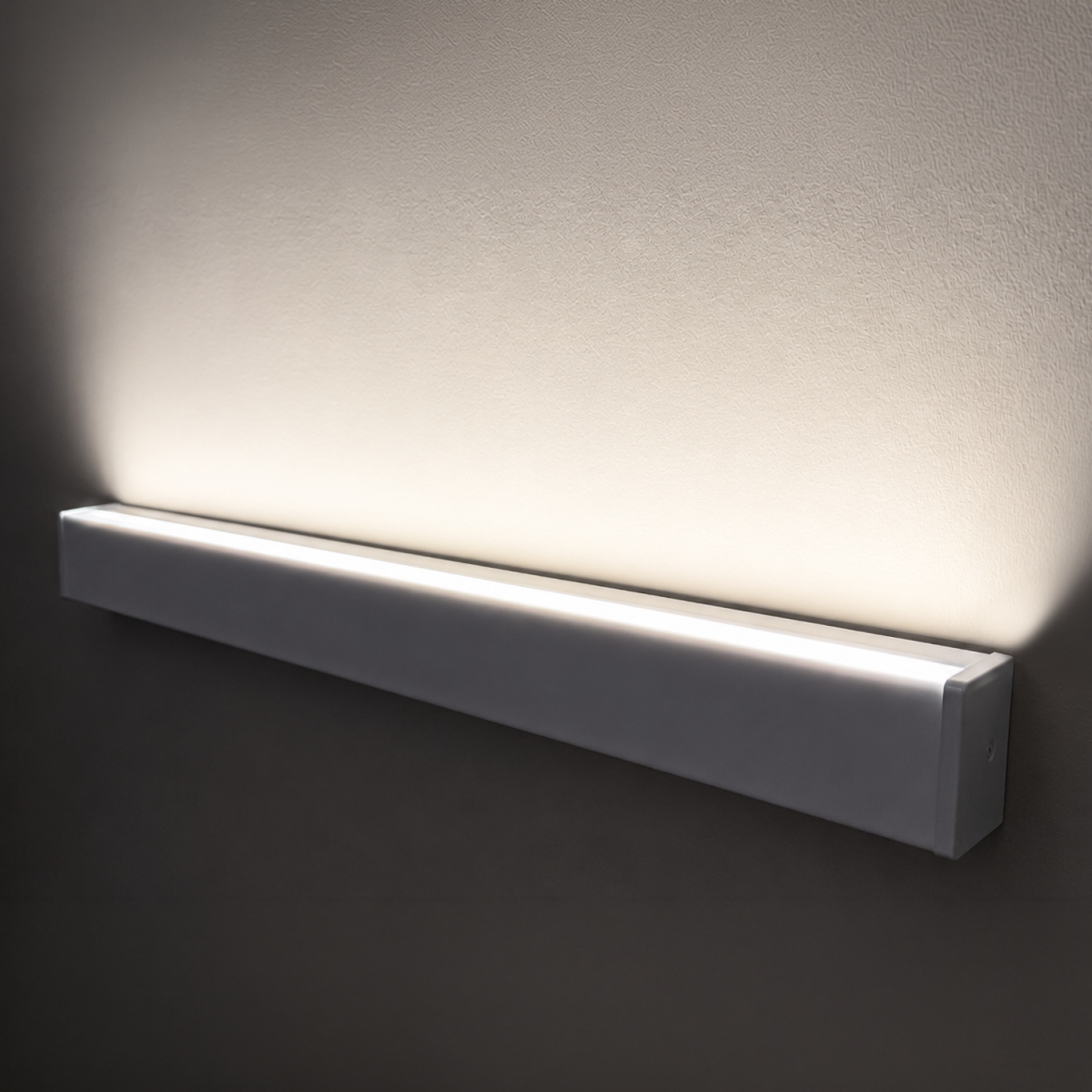

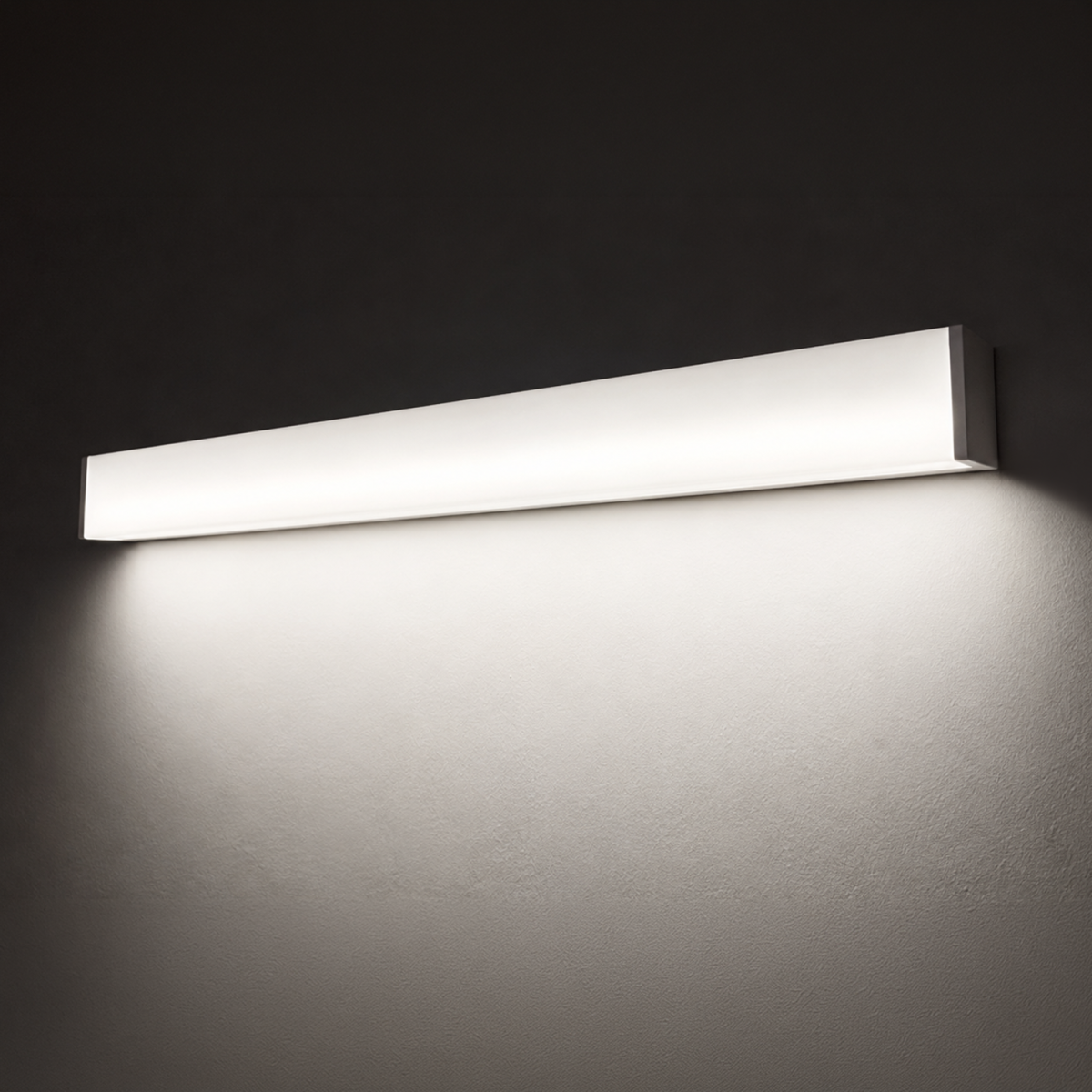

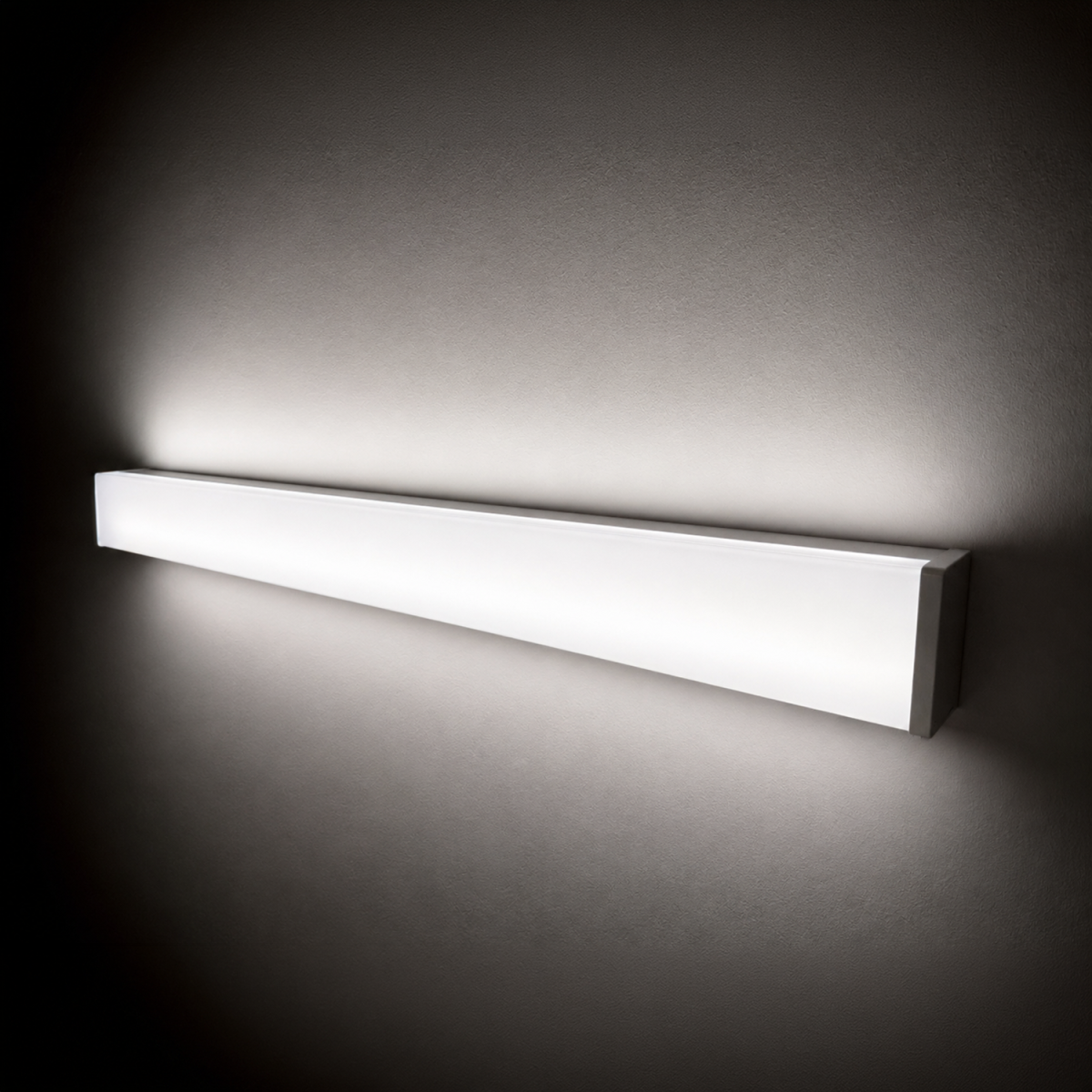

ULW4-2G-BED Overbed Bi-Directional Light
This LED overbed light emulates the traditional bi-directional fixtures used throughout hospitals and general medical / nursing industry.
Contact us for availability and pricing information.
Need assistance?
ULW4-2G-BED Overbed Bi-Directional Light
ULW4-2G-BED Overbed Bi-Directional Light
Downloads & Resources
Product Overview
This LED overbed light emulates the traditional bi-directional fixtures used throughout hospitals and general medical / nursing industry.
Features:
- White finish as standard. (other finish available)
- One-piece acrylic ribbed white lens with panel inside to produce bi-directional light.
- Screw-in ends.
- 4-way pull switch is standard.
- Paint after fabrication.
Mounting:
- Wall mounted.
LED:
- High quality long-life LEDs.
- LM80
- Color Temperature: 2700/3000/3500/4000/5000 (K)
- Color Rendering Index: > 82.8
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours
Electrical:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- Generic : 0-10V 10% dim. (GR)
- 0-10VDC dimming 1%~100%.
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).
ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.
Listing:
- UL listed.
- Listed to UL 1598 and UL 8750.
- Suitable for damp locations.
- 5 years limited warranty.
- ADA compliant (less than 4” off wall).
- ARRA compliant. (optional)
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant: BAA/BABA/ARRA options available
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
