OLPRH

OLPRH LED Polycarbonate Remote Head

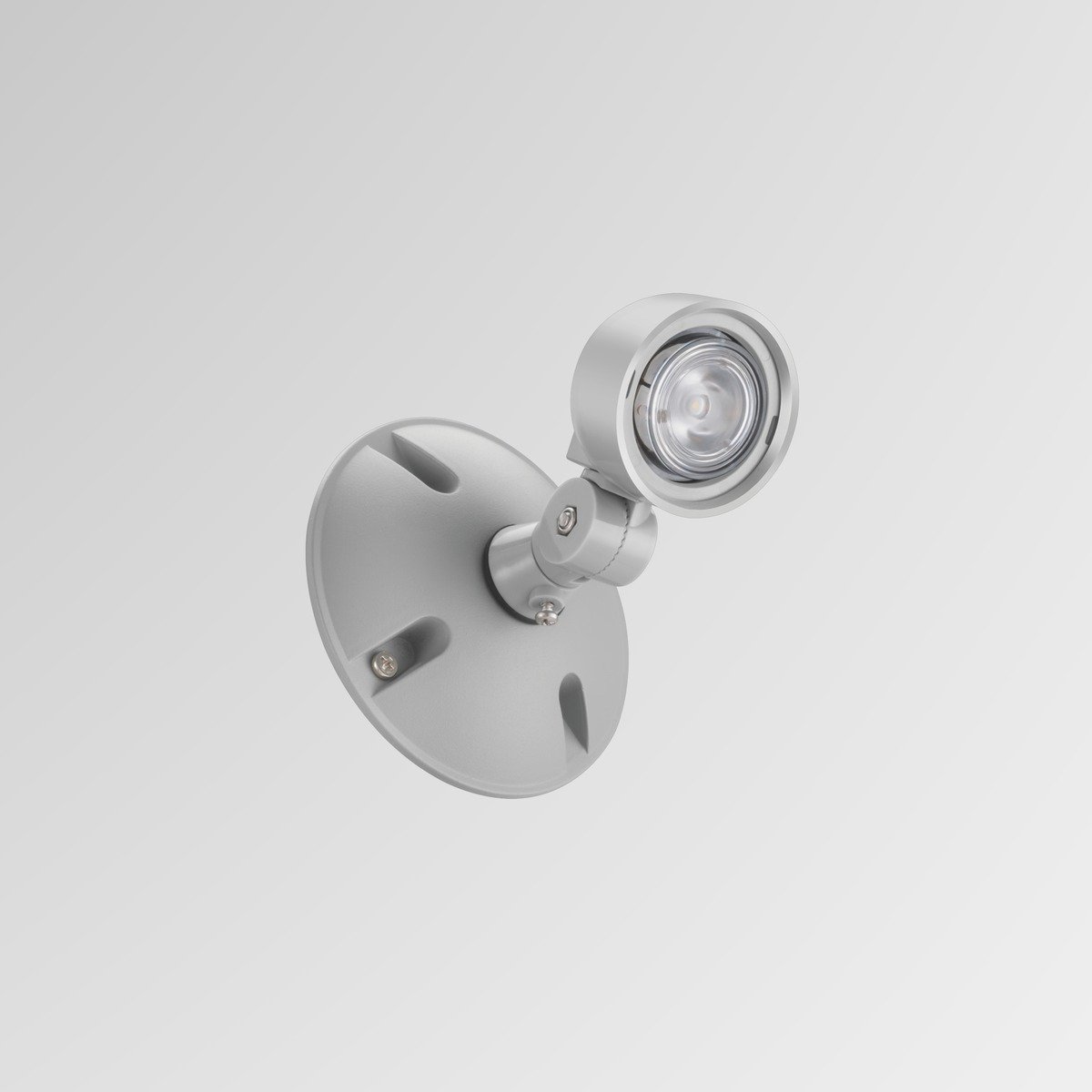

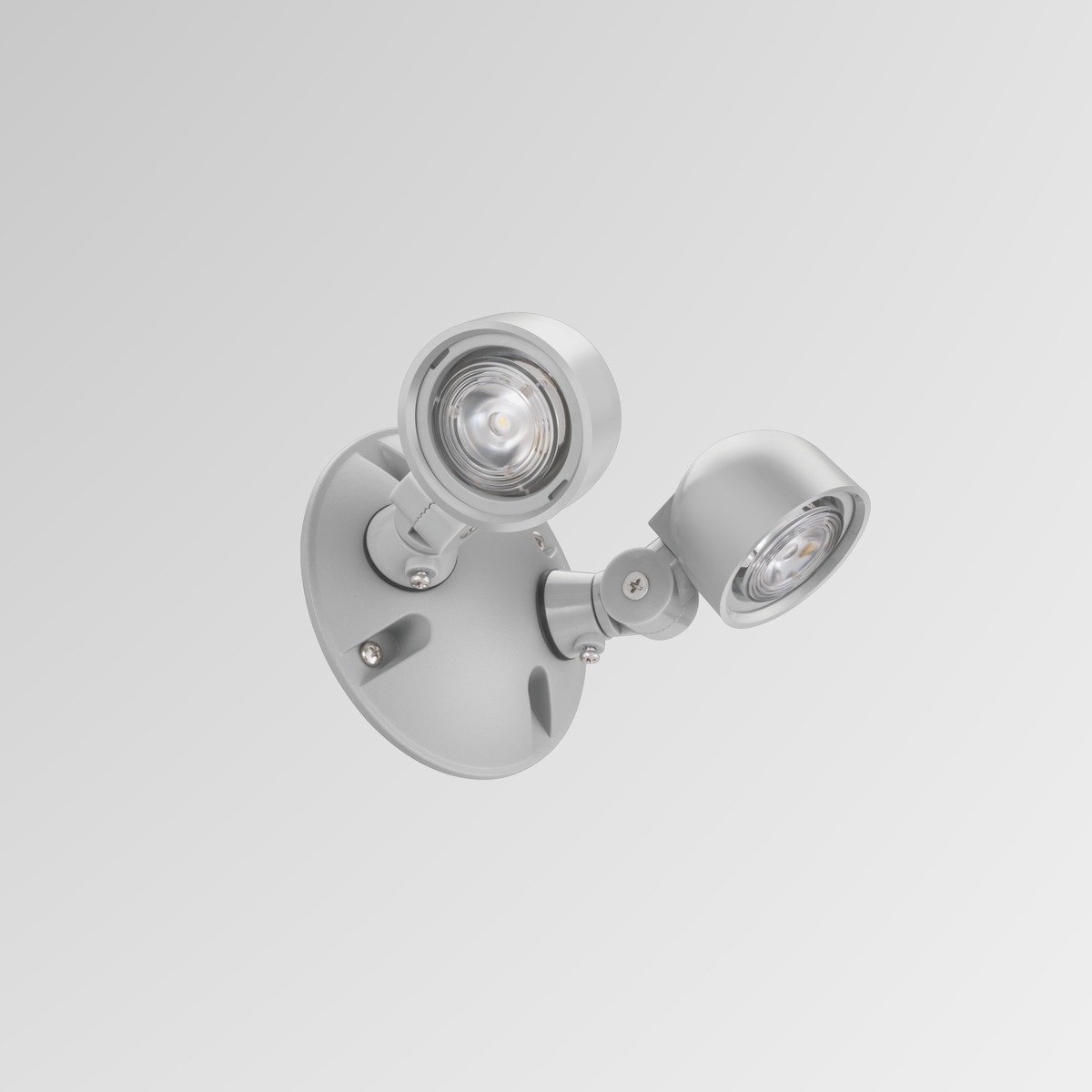

The OLPRH is an engineering grade, high-impact resistant polycarbonate remote head available in single or double head configurations, cULus listed for wet locations with adjustable LED lamp heads for optimal center-to-center spacing.

Wet Location Approved cULus Listed
Inventory and Lead Time

Contact us for availability and pricing information.

Need assistance?
Call us at (866) 471-7711

Downloads & Resources

Spec Sheet

Complete product specifications and technical details

Photometrics (Up & Down)

IES files for up & down option of the fixture

Product Overview

Features

  • Engineering grade, high-impact resistant polycarbonate housing.
  • Sealed and gasketed in standard gray or black finish.

Mounting

  • Universal mounting adapter plate included. Mounts to single-gang switch box.
  • Distance of maximum run is determined by system voltage, wire gauge and total maximum wattage on the run.
  • Suitable for wall or ceiling mount.

LED

  • Long lasting, efficient, ultra bright white LED lamp heads.
  • 0.5 watt (1 LEDs x 0.5 watt) per head. Unique all-inclusive lamp, diffuser and lens assembly.
  • Adjustable LED lamp heads provide optimal center-to-center spacing.

Electrical

  • Powered from low voltage power source with low voltage wiring (not provided).

Listing

  • Five year warranty.
  • cULus Listed for wet locations (-30°C - 50°C).
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.

Need a Custom Configuration?

Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
