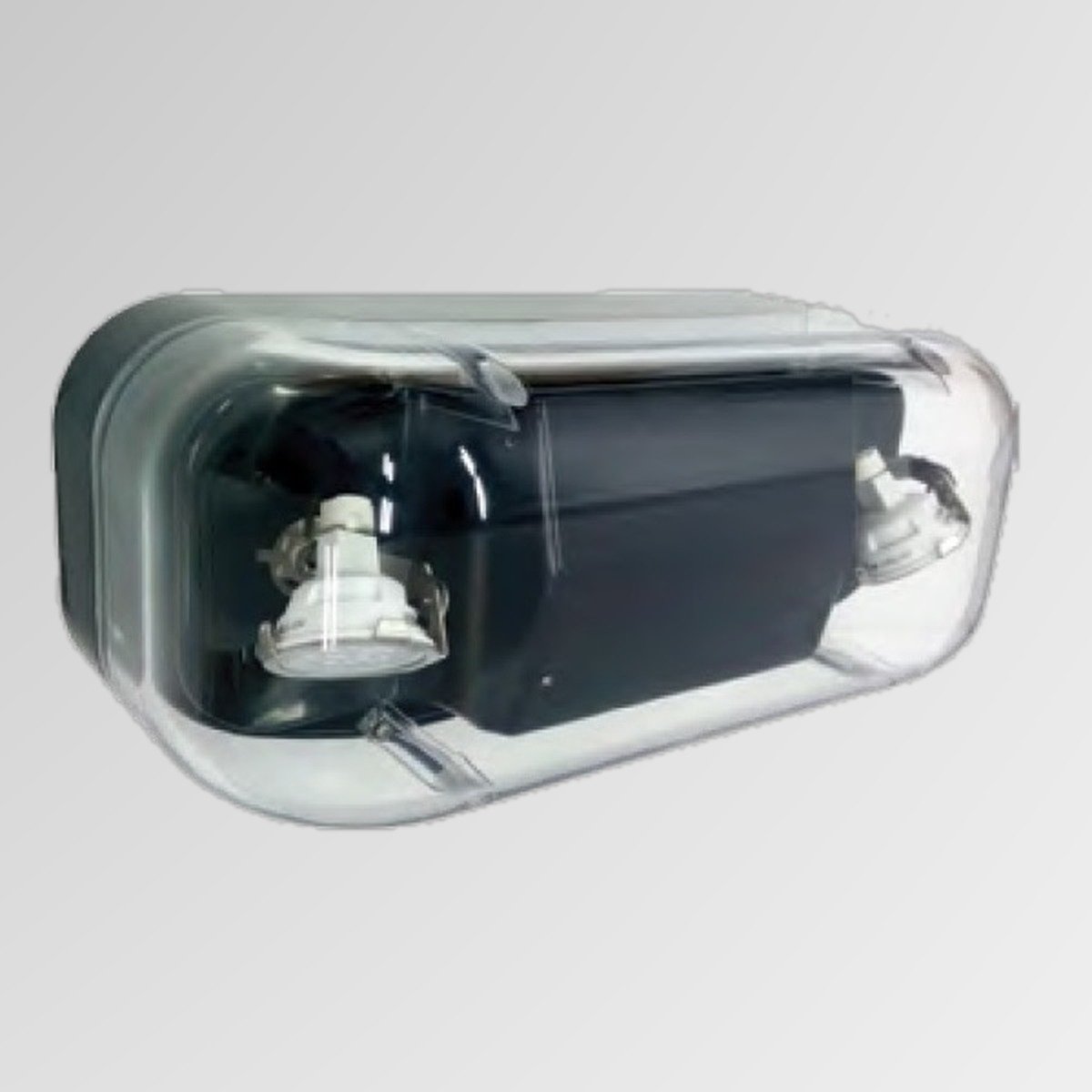

OLNEU16 LED NEMA4X/NSF Emergency Unit

Features

• Housing is reinforced polycarbonate construction in white or black finish.
• Corrosion-resistant enclosure with one piece, high-impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws.
• Knockouts provided for conduit feed applications.

Mounting

• Universal knockout pattern on back provided with gasket for watertight seal for back mount.
• Suitable for wall mount.

LED

• Two fully adjustable, ultra bright 3.6 watt high performance MR-16 base LED lamp heads for optimized center-to-center spacing.

Electrical

• Dual 120/277 voltage.
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check-battery).
• Charge rate/power "ON" LED indicator light and magnetic test switch for mandated code compliance testing.
• 6V/12V maintenance-free, rechargeable NiCd battery (15W models).
• 6V/12V maintenance-free, rechargeable sealed lead acid battery (36W and 54W models).
• Offers 7.8W, 28.8W, 46.8W of remote capacity (6V/12V DC output) standard on the 15W, 36W and 54W models.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours (36 hours on the 54W model).

Listing

• Five year warranty on all electronics and housing. Batteries prorated for two (lead acid) / five (NiCd) years.
• Meets UL924, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes.
• IP66 rated for Ingress protection.
• NEMA4X rated.
• UL certified for use in food service operations.
• UL listed for wet locations (0°C – 50°C on 15W and 10°C – 40°C on 36W / 54W models).

Options

• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
• CW: Optional internal heater and battery blanket for extreme cold temperature applications (-25°C – 50°C).
• TP: Tamper-proof hardware helps discourage unauthorized access to the unit.
