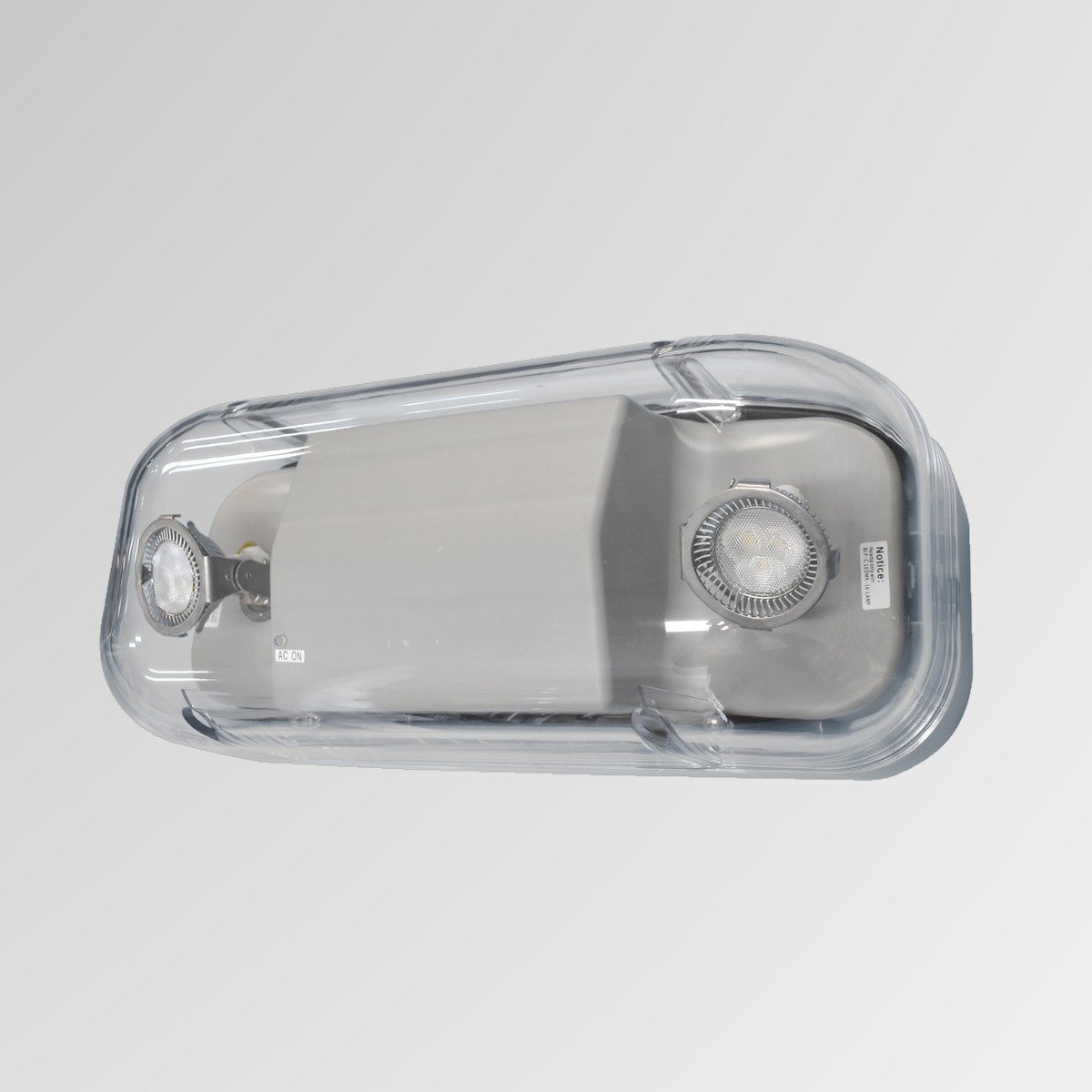

OLHLEU16 LED Hazardous Location Emergency Unit

Features

• Housing is fiberglass reinforced polycarbonate construction in gray finish.
• Corrosion-resistant enclosure with one piece, high-impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws.

Mounting

• Die-cast mounting brackets provided for surface wall-mount installation.
• Pre-installed conduit hub for conduit and pendant-mount installation.

LED

• Two fully adjustable, ultra bright 3.3 watt high performance MR-16 base LED lamp heads for optimized center-to-center spacing.

Electrical

• Dual 120/277 voltage.
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check-battery).
• Charge rate/power "ON" LED indicator light and magnetic test switch for mandated code compliance testing.
• 6V/12V maintenance-free, rechargeable NiCd battery.
• Offers 7.8W of remote capacity (6V/12V DC output) standard.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Listing

• Five year warranty on all electronics and housing. Batteries prorated for five years.
• Meets UL924, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes.
• IP66 rated for Ingress protection.
• Rated for Class 1, Division 2, Groups A, B, C & D.
• UL listed for wet locations (0°C – 50°C).

Options

• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
• CW: Optional internal heater and battery blanket for extreme cold temperature applications (-20°C – 50°C).
• TP: Tamper-proof hardware helps discourage unauthorized access to the unit.
