MWP2-35L

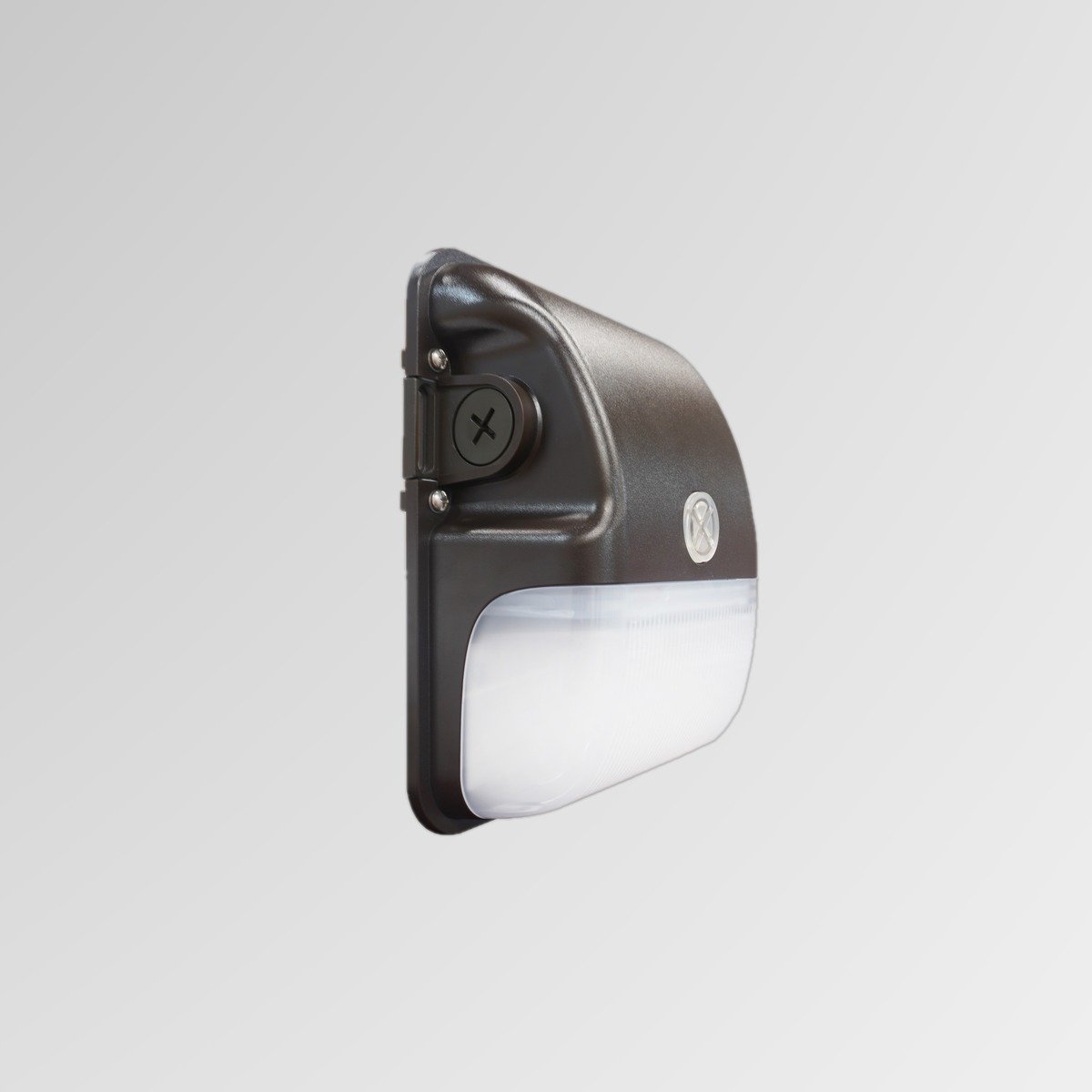

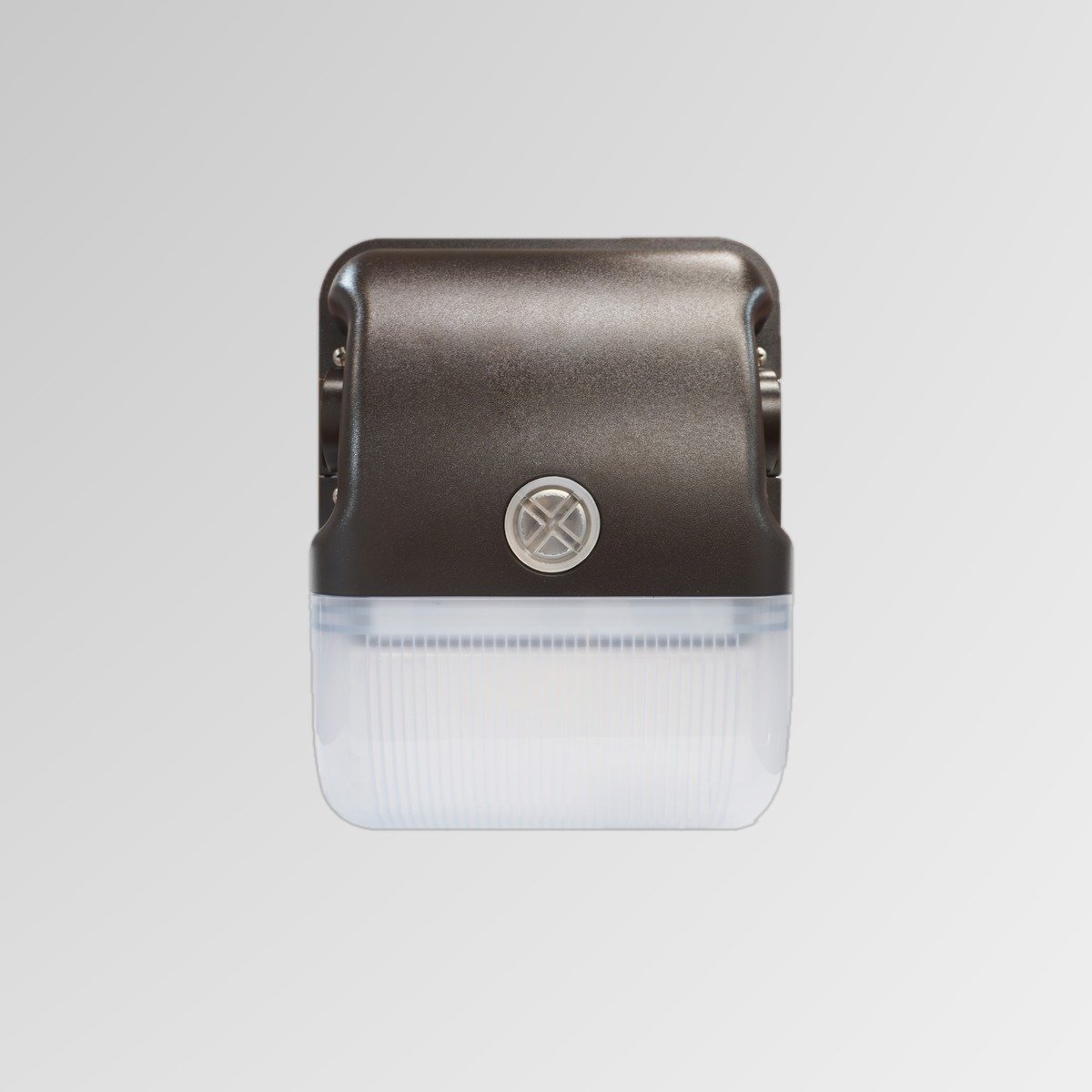

MWP2 LED Mini Wall Pack
The MWP2 is a heavy-duty die-cast aluminum LED mini wall pack with field-selectable color temperature (3000K/4000K/5000K), 24W nominal wattage delivering up to 3500 lumens, and a built-in level bubble for fast, balanced wall-surface installation.
Inventory and Lead Time
Contact us for availability and pricing information.
Need assistance?
Call us at
(866) 471-7711
MWP2 LED Mini Wall Pack
MWP2 LED Mini Wall Pack
Contact for Pricing
Downloads & Resources
Product Overview
Features
- Built-in photocontrol and color tunable controller for varieties of CCT.
- Color tunable: 3000K / 4000K / 5000K.
- Meets new DLC 5.1 requirements.
- Built-in level bubble for easy and fast installation.
- Back ring design for even-balanced installation compatible with both round, octagon, and squared junction box.
Housing
- Heavy duty die-cast aluminum housing.
- High impact polycarbonate lens.
Mounting
- Wall surface mount light.
- Built-in level bubble for easy and fast installation.
- Back ring design for even-balanced installation.
- Compatible with round, octagon, and squared junction box.
LED
- Latest generation LED chips.
- 24W nominal wattage.
- 3500 lumen output.
- 145.8 lm/W efficacy.
- 80+ CRI.
- Color temperature selectable options: 5000K / 4000K / 3000K.
Electrical
- Input voltage: 120-277V AC.
- Nominal wattage: 24W.
- 10kV surge option.
- 20kV surge option.
- Operating Temp: -40°C ~ +40°C.
Listing
- UL and cUL listed for wet locations.
- Meets DLC 5.1 requirements.
- UV stabilized powder coated finish. BZ: Dark bronze.
