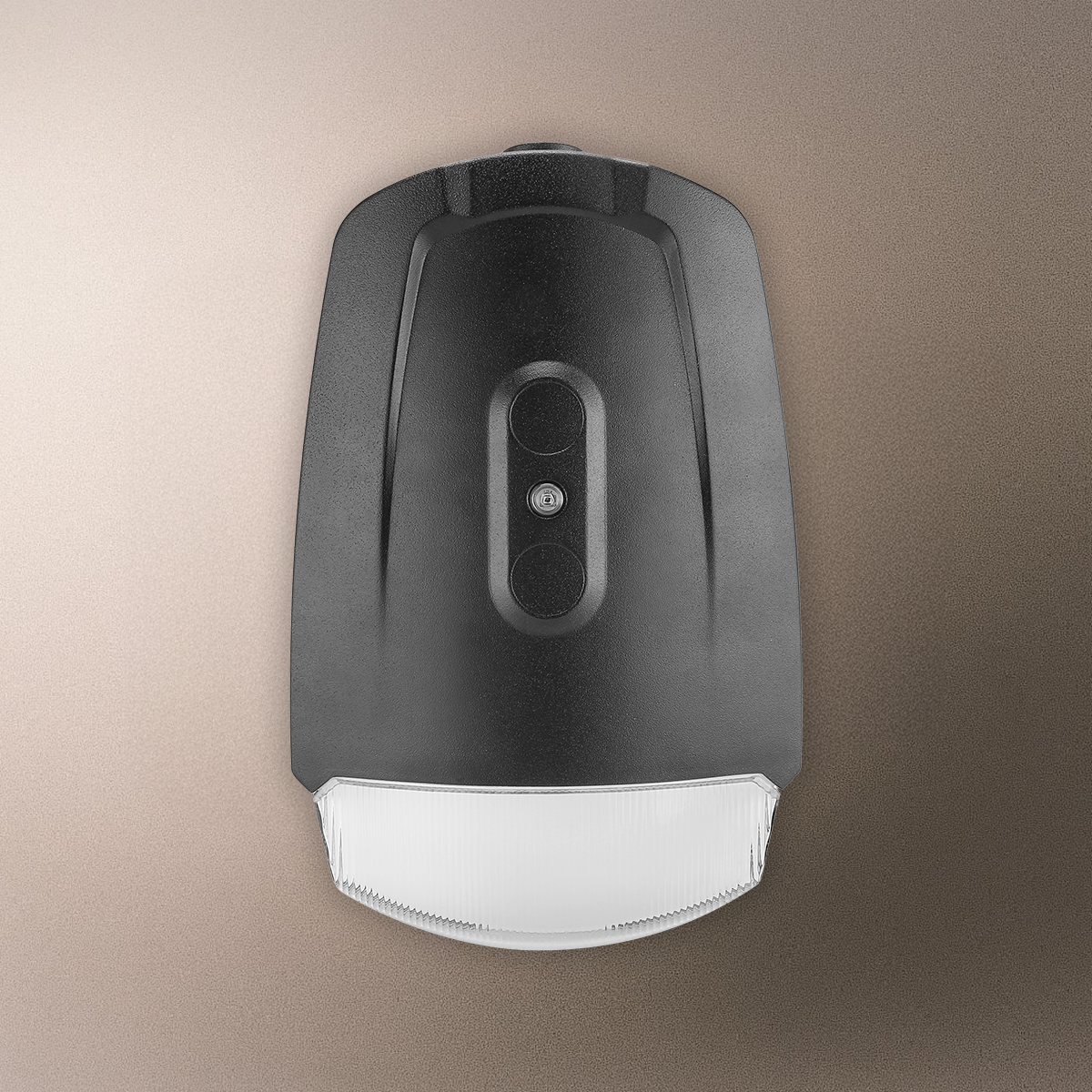

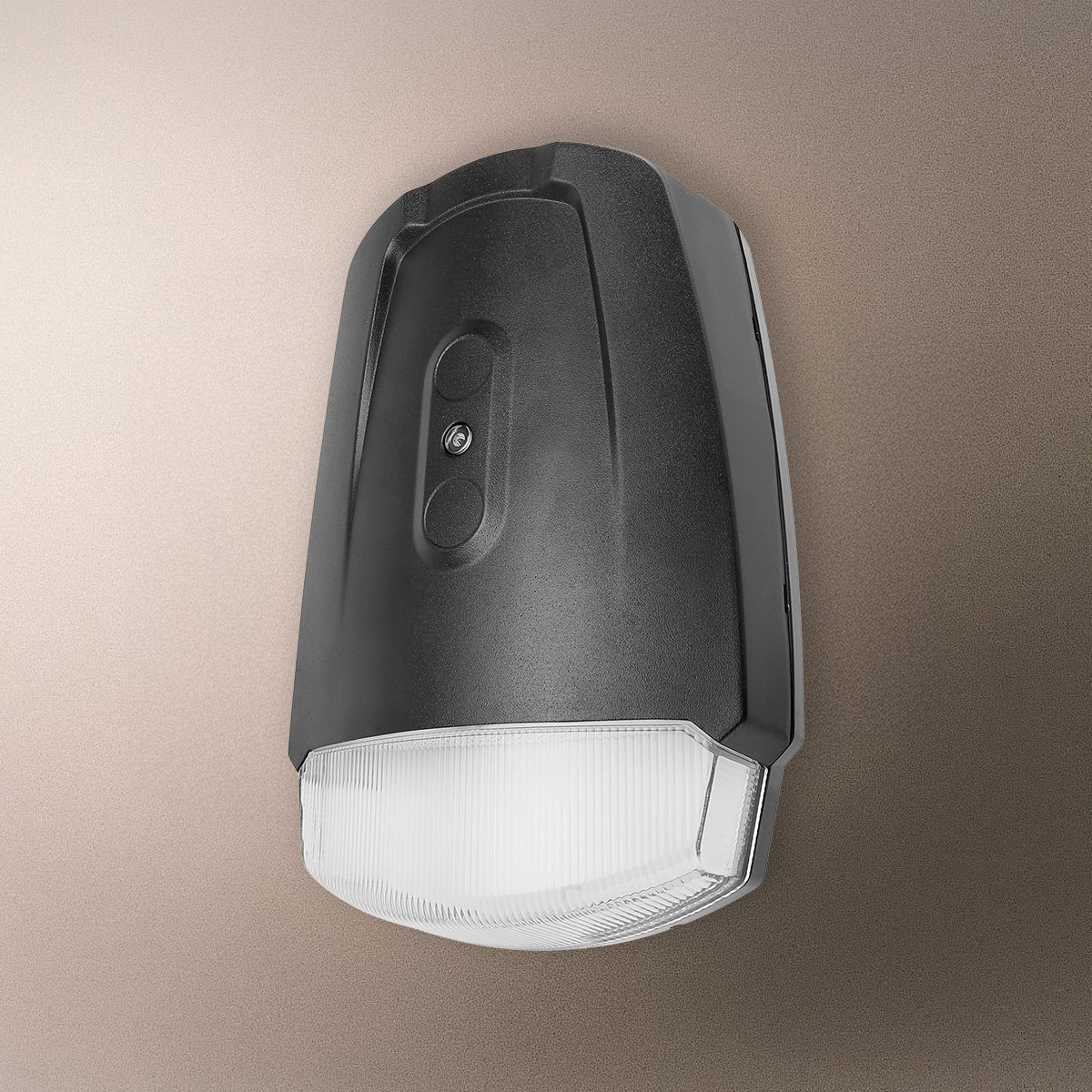

MWP1-3G Mini LED Wall Pack
Cast in a traditional design, the LED wall mount luminaire offers the shape you’ve grown accustomed to coupled with the high-powered and energyefficient LEDs you want. Photocell for dusk to dawn operation. It is ideal for safety, security and any facilities.
Contact us for availability and pricing information.
Need assistance?
MWP1-3G Mini LED Wall Pack
MWP1-3G Mini LED Wall Pack
Downloads & Resources
Product Overview
FEATURES:
• Rugged die-cast aluminum housing.
• Excellent thermal management ensures long lifespan.
• High impact, weather resistant housing and lens.
• Standard photocell for dusk to dawn operation which is ideal for safety, security and facilities.
• Standard integrated Emergency Battery Backup for standby lighting in the event of power loss.
• Polycarbonate clear lens.
MOUNTING:
• Surface wall mount.
• Two-step easy installation.
LED:
• Field Adjustable color temperature: 3000 / 4000 / 5000K
• Scalable lumen packages from 1,300 - 2,660 lm.
• Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Lumen Maintenance L70 greater than 54,000 hours IESNA TM-21.
• CRI 80
ELECTRICAL:
• Power factor >90%, THD <20%, and an expected life of 50,000 hours.
• Universal 120-277 VAC input voltage.
• Lithium integrated Emergency Battery Backup.
• Operating temperature: -20ºC to 40ºC (-4ºF to 104ºF)
LISTING:
• Listed to UL 1598 and UL 8750.
• UL / cUL wet location listed.
• 5 years warranty.
• ARRA compliant. (optional)
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant:
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
