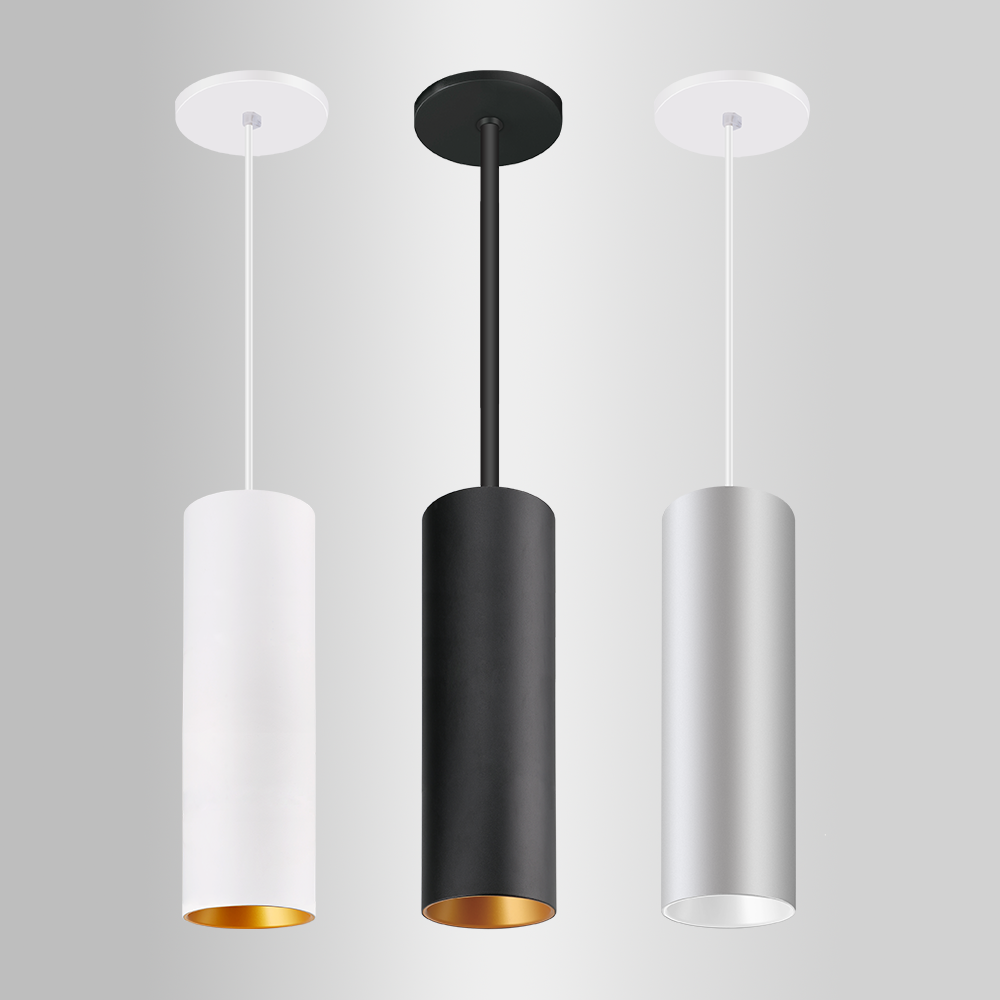

MCR-3 Pendant Light

FEATURES:
- Options for anti-glare trim, drop lens, decorative kit or wall wash
- COB LED: 4 Fixed CCT 90+ CRI or Dim to Warm 95+ CRI options
- Versatile mounting with cable pendant, stem pendant, surface and wall mount
- Fully modular cylinder, configure over 10,000 possibilities
- Choose from a wide range of beam angles: 15°, 24°, 36°, 60°
- 2 in 1 Dimming: 0-10V (Dim to 1%) and TRIAC in one package

MOUNTING:
- Cable pendant, stem pendant, surface mount and wall mount options.
- Cable pendant: white/black power cable is provided in length specified: 2' nominal, 4' nominal, 8' nominal or 12' nominal. Installers can cut the cable in the field to desired length.
- Stem pendant: Ø12/25" steel stem is provided in length specified: 2' nominal, 4' nominal, 8' nominal or 12' nominal, and is provided in white or black finish.
- Pendant with flat canopy style for recessed J-box.
- Pendant with conduit cutout deep canopy style for surface mounted 4" octagonal junction box.
- Surface mount to recessed junction box or surface mount with conduit cutout for surface mounted 4" octagonal junction box.
- Wall mount option listed in ordering guide.

LED:
- Powered by CREE or Bridgelux high efficiency COB LED chip.
- 2700K, 3000K, 3500K and 4000K fixed CCT with a great color consistency, or Dim to Warm from 3000K to 2000K.
- 90+ CRI for fixed CCT or 95+ CRI for Dim to Warm, producing outstanding illumination at a tight chromaticity specification and color binning process.
- Light engine / heatsink: aluminum housing acting as the heat sink to maximize life. The temperature of all heatsinks are controlled at 60-70°C.

ELECTRICAL:
- Input voltage: standard electronic drivers are cULus recognized and available for 110-277V AC.
- LED driver: powered by Class 2 high efficiency LED driver, with standard 0-10V dimming which continuously dims to 1% or Triac dimming that works with many types of controls.
- Thermal overload protection shuts down the luminaire when system temperatures exceed designed operating conditions.
- THD <20%.
- Power Factor >0.9.
- Environment: damp rated for ambient operating temperature of -20°C to +40°C (-4° to +104°F).
- Ambient temperatures at fixture location should not exceed 40°C during normal operation.

Finish
- Constructed of extruded aluminum.
- Powder coated polyester paint that comes standard in white and black.
- Finish options in ordering guide: WH White, BK Black, SL Silver (white cable if cable pendant), CC Custom Colors.

LISTING:
- cULus listed for damp locations.
- Five-year warranty for parts and components. (Labor not included)
- For interior use only.
