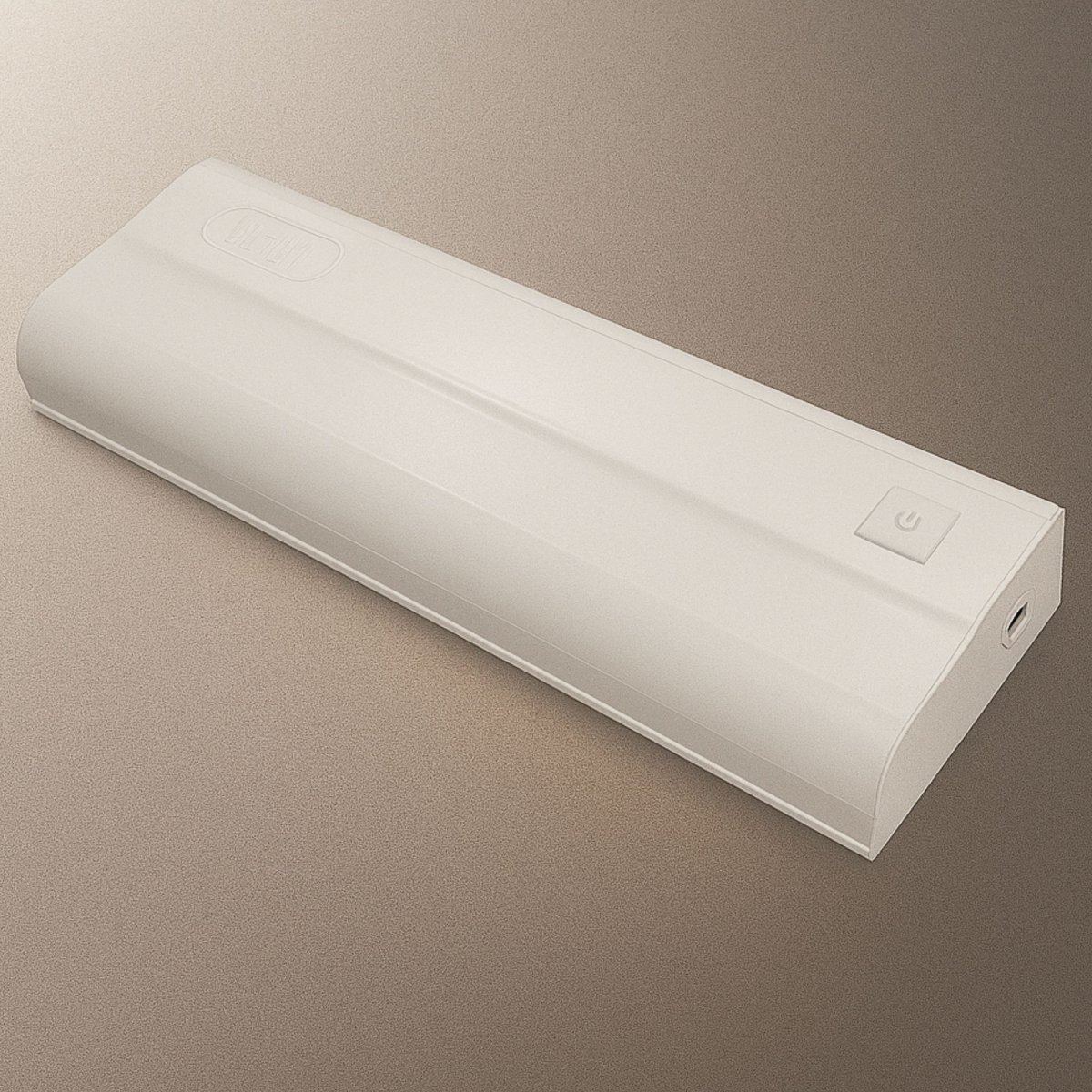

LEDUC-2G-E Undercabinet LED Light
The LEDUC-2G-E is an economical series of undercabinet luminaries for use in kitchens, retail displays and coves. With a painted, steel housing and polycarbonate lens, the LEDUC-2G-E provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, incandescent or fluorescent undercabinet luminaires.
Contact us for availability and pricing information.
Need assistance?
LEDUC-2G-E Undercabinet LED Light
LEDUC-2G-E Undercabinet LED Light
Downloads & Resources
Product Overview
The LEDUC-2G-E is an economical series of undercabinet luminaries for use in kitchens, retail displays and coves. With a painted, steel housing and polycarbonate lens, the LEDUC-2G-E provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, incandescent or fluorescent undercabinet luminaires.
Features:
- On / Off rocker switch.
- Available in 7 different lengths.
- Available in white.
- Painted steel housing and polycarbonate lens.
- Tool-less access to LED channel and wiring enclosure.
- Knockouts on sides and back simplify electrical connections.
- Key hole slots provide for easy installation in new construction or retrofits.
LED:
- Color Temperature: 2700/3000/3500/4000/5000 (K).
- Long-life LEDs provide up to 196,000 hours of operation with at least 70% of initial lumen output (L70).
- Total harmonic distortion < 20%.
- Available models provide from 334 to 1543 nominal lumens.
- Power factor > 90.
- CRI 90+
Electrical:
- Built-in integral electronic driver.
- 120 AC voltage (60Hz) as standard.
- 2.5Kv built-in surge protection as standard.
Listing:
- cULus listed for damp locations.
- Energy Star certified.
- Complies with FCC Part 15, class B.
- Suitable for damp locations.
- Complies with ANSI/IEEE C62.41.1-2002, surge immunity protection (2.5kV).
- 5-year warranty of all electronics and housing.
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant:
