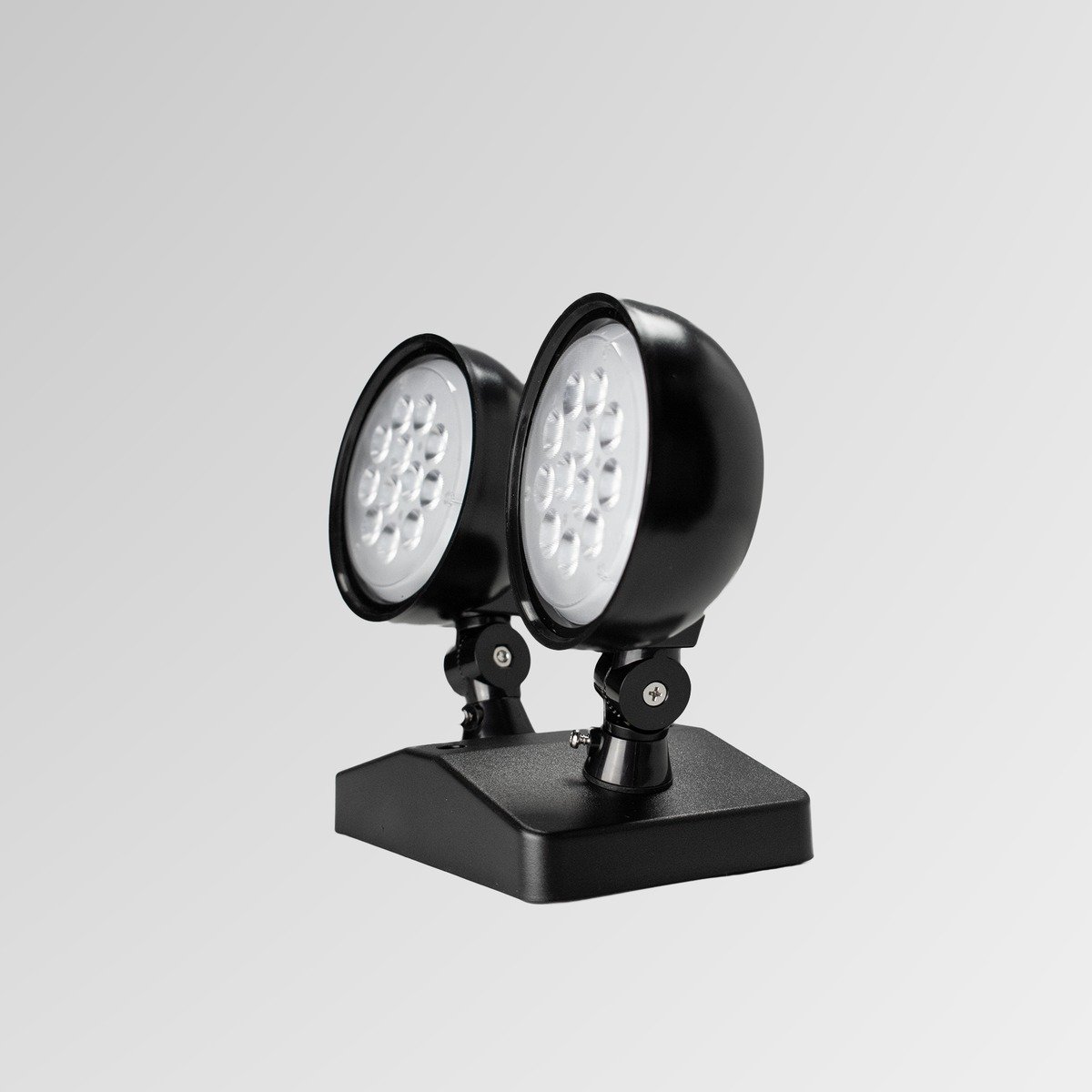

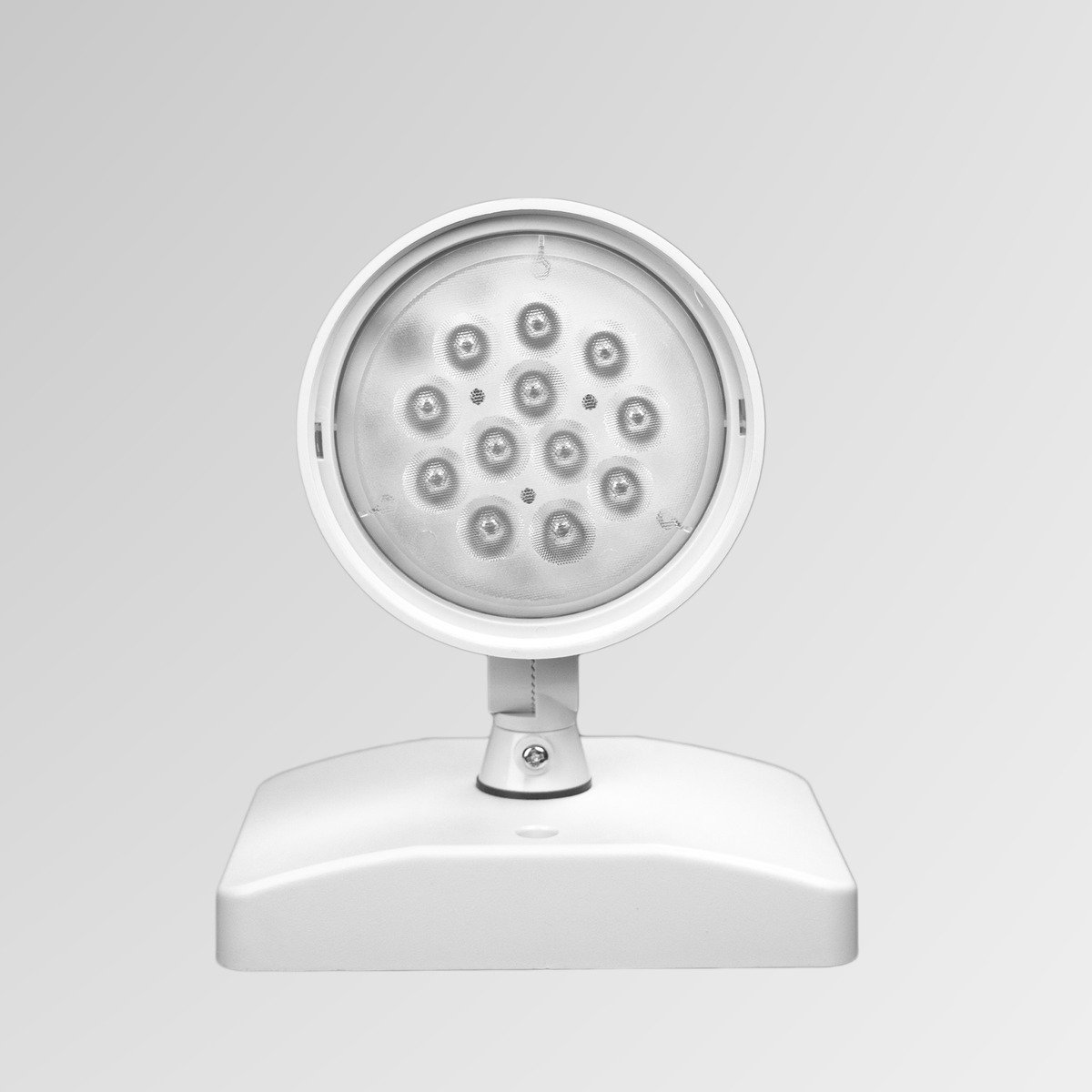

HPRH LED Polycarbonate Remote Head
UL Listed for damp locations to support code-compliant emergency egress lighting. The HPRH pairs with compatible emergency inverters to deliver adjustable, glare-free illumination for the required path of egress, ideal for hallways, stairwells, and commercial interiors requiring UL924 and NFPA 101 compliance.
Inventory and Lead Time
Contact us for availability and pricing information.
Need assistance?
Call us at
(866) 471-7711
HPRH LED Polycarbonate Remote Head
HPRH LED Polycarbonate Remote Head
Contact for Pricing
Downloads & Resources
Product Overview
Features
- Ultra-bright, energy efficient, long-life White LED adjustable lamp heads.
- Up to 100-ft center-to-center spacing with a 6-ft path of egress at 15-ft mounting height.
- Adjustable glare-free PAR-type lamp heads with all-inclusive lamp, reflector, and lens assembly.
- Available in engineering grade, impact-resistant thermoplastic housing.
- Standard white or black finish.
Mounting
- Universal mounting adapter plate included.
- Mounts to single-gang switch box.
- Suitable for wall or ceiling mount.
LED
- 6.0 watt (12 LEDs x 0.50 watt) per head.
- Single or double head configurations.
Electrical
- Powered from low voltage (5-15VDC) power source with low voltage wiring (not provided).
- Distance of maximum run determined by system voltage, wire gauge, and total maximum wattage on the run.
Listing
- UL Listed for damp locations (0°C – 50°C).
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- 5 years limited warranty.
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
