Flat Suspended Linear Light

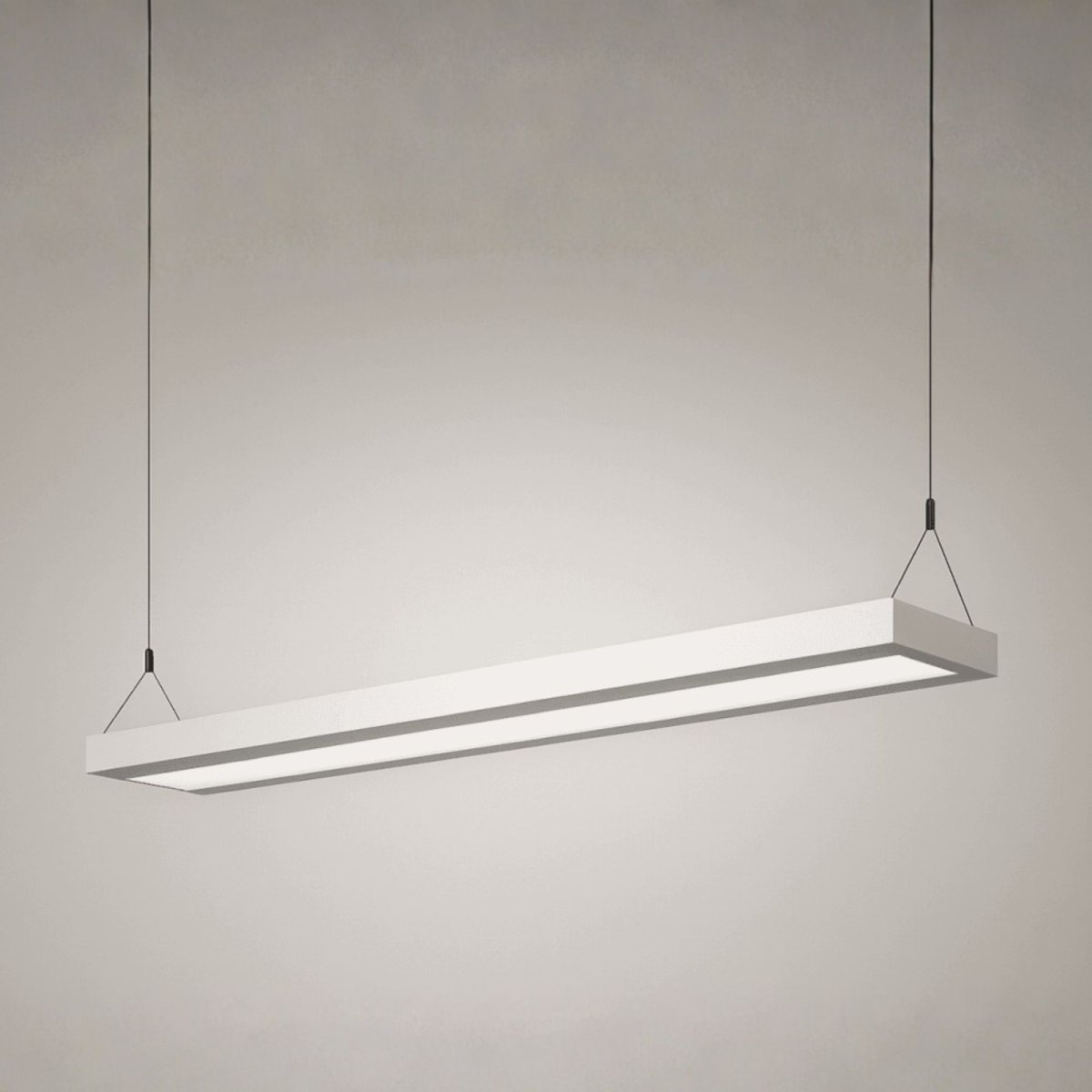

Low-profile direct/indirect Architectural Linear LED fixture. Housing is formed by cold-rolled steel. Configured for either individual or continuous runs, Use for general office, banking, retail and educational environments.
Contact us for availability and pricing information.
Need assistance?
Flat Suspended Linear Light
Flat Suspended Linear Light
Downloads & Resources
Product Overview
Low-profile direct/indirect Architectural Linear LED fixture. Housing is formed by cold-rolled steel. Configured for either individual or continuous runs, Use for general office, banking, retail and educational environments.
Mounting:
- Pendant and surface mount.
LED:
- High quality arrayLEDs.
- LM80
- Color Temperature: 2700/3000/3500/4000/5000 (K), and tunable white -275 (2700~5000K).
- Color Rendering Index: >80 (optional>90).
- Nominal Lamp Life: 100,000 hours.
- Reported L70 hours: +60,000 (55°C).
Finish:
- Durable, low gloss, textured white, powder coated finish.
- Standard powder-coat textured white finish.
- Custom colors available.
- Comes with lens.
Electrical:
- High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
- Dimming Control: 1~100% (Std.), Bi-level step dim.
- Power Factor: +0.9
- Efficiency: +85%
- Ambient Operating Temperature: -22°F (-30°C) ~ 122°F (50°C).
- Constant Current, Class 2
ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.
Listing:
- UL / CUL listed.
- UL listed for dry & damp location.
- Listed to UL 1598 and UL 8750.
- CEC Compliant EM (please contact for more information).
- Assembled in USA (optional).
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty. - RGB+W has 2 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant: BAA/BABA/ARRA options available
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
