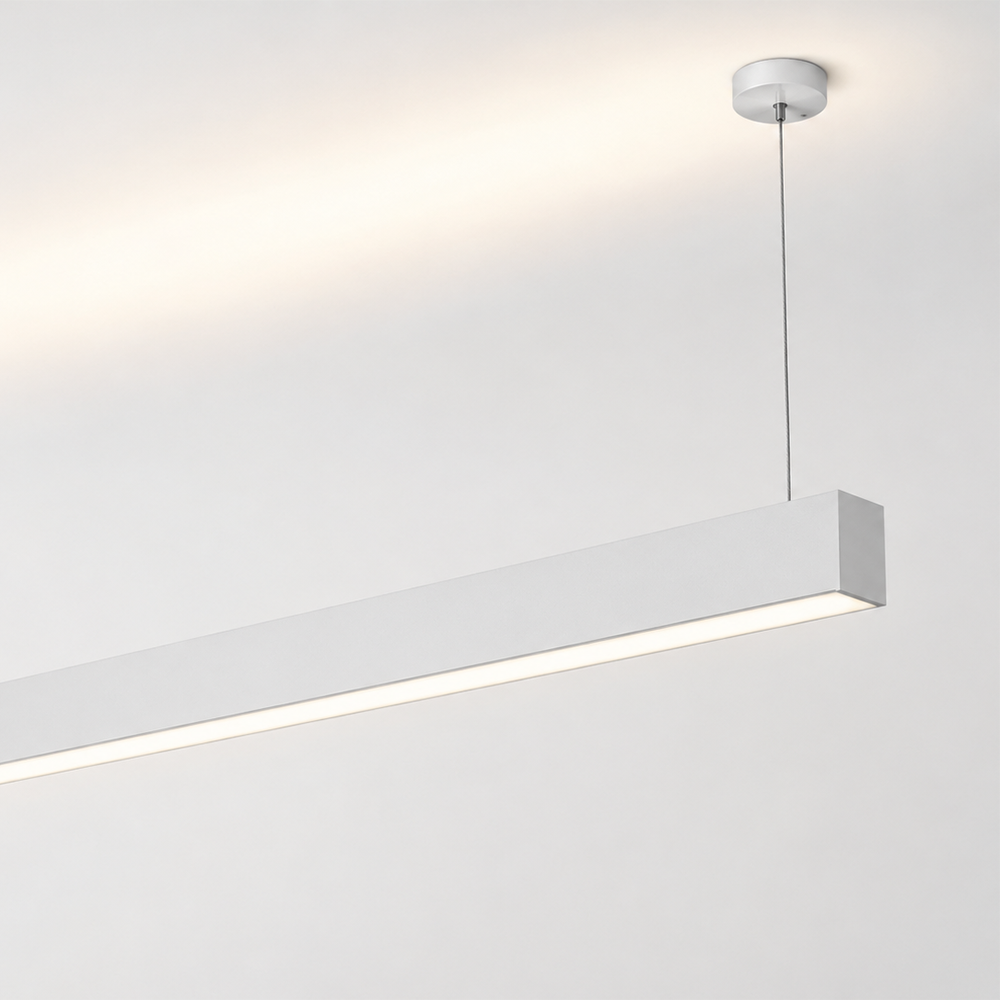

EB1 Edge Beam Linear Pendant Light

Features

• 90+ CRI, available in 2ft, 4ft, and 8ft lengths.
• Two lighting distributions via visible DIP switch: 25% up/75% down or 100% down.
• CCT and wattage adjustable by visible DIP switch.
• Available in diffuser, louver, and drop lens.
• 0-10V dimming, dims to 10%.
• Individual units or continuous runs.
• Custom patterns with optional Line, L, X, T, Y, V joiners.
• Drywall ceiling or T-Grid ceiling compatible.
• Pendant mount.
• cULus listed, Damp locations, 5-year limited warranty.

Mounting

• Drywall ceiling / off grid: various hard ceilings, mount to J-box.
• Drop ceiling / on grid: mounts to T-grid.
• Compatible T-grid types: 9/16" Flat, 9/16" Slot, 15/16" Flat, and 15/16" Slot.
• Pendant accessories include canopy kits, power cord kits, aircraft cable kits, junction box, and T-grid clips.
• Individual or continuous run: up to 40ft in 120V AC, 100ft in 277V AC.

LED

• 90+ CRI standard.
• CCT adjustable: 3000K / 3500K / 4000K.
• Wattage selectable by length: 2ft = 20W/15W/10W; 4ft = 40W/30W/20W; 8ft = 80W/60W/40W.
• Lumen output up to 8000LM (8ft Drop Lens, 100% down).

Electrical

• 0-10V dimming: dims to 10%, 110-277V AC.
• Default settings: maximum wattage, 4000K, and 100% down.
• Damp rated: -20°C to +40°C (-4°F to +104°F).
• Tested dimmers: Lutron Diva-Dvtv and Leviton IP710-DL.

Listing

• cULus listed.
• Damp locations.
• 5 years limited warranty.
