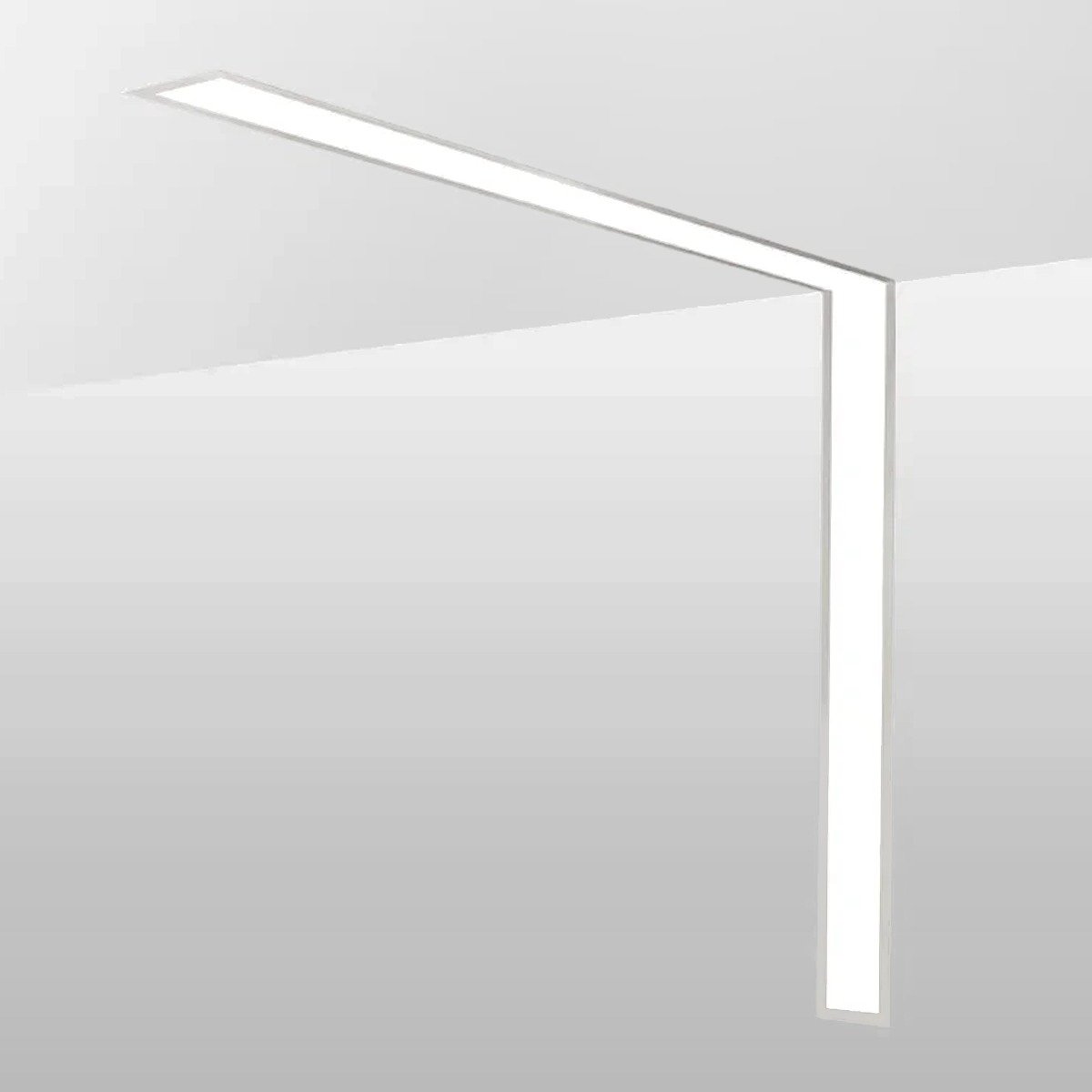

CUBE2-CW90 LED Architectural Corner Linear Light
CUBE2-CW90 creates a seamless wall-to-ceiling or ceiling-to-wall 90° corner installation. The continuous luminaire enables endless transverse runs and adds a striking line of light in commercial hallways, building lobbies, offices, retail spaces, and educational environments.
Contact us for availability and pricing information.
Need assistance?
CUBE2-CW90 LED Architectural Corner Linear Light
CUBE2-CW90 LED Architectural Corner Linear Light
Downloads & Resources
Enlighted
The documentation with system overview, installation details, and configuration information
Product Overview
Application
The unique CUBE2-CW90 series offers versatile installation from wall to ceiling or ceiling to wall. This seamless 90° luminaire creates endless transverse runs and provides flexibility in uniting a space with lines of light. CUBE2-CW90 is well suited for commercial hallways, building lobbies, educational environments, offices, retail, or anywhere a striking ceiling-to-wall line of light is desired.
Mounting
- Compatible with drywall installations.
LED
- High quality array LEDs, LM80 rated.
- Color Temperature: 2700 / 3000 / 3500 / 4000 / 5000K.
- Color Rendering Index: >80 (optional >90).
- Nominal Lamp Life: 100,000 hours.
- Reported L70 hours: +60,000 (55°C).
Electrical
- High power factor electronic driver; 120–277 Vac input, 50/60 Hz.
- Over-voltage, surge, short-circuit, and overload protection.
- Power Factor: >0.95; THD <20%; Class 1 or Class 2 circuit.
- 0-10V dimmable driver standard; 1%–100% dimming range.
- Operating temperature: −4°F (−20°C) to 122°F (50°C).
Finish
- Standard powder-coat textured white finish on exposed trim.
- Snap-in acrylic lens included as standard.
- Custom colors available; consult factory.
Listing & Warranty
- UL / CUL listed.
- 5-year limited warranty standard (RGB+W: 2 years).
- Optional 7- or 10-year warranty available.
- Bluetooth Mesh System available; contact factory for details.
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant: BAA/BABA/ARRA options available
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
