CUBE1-NRC

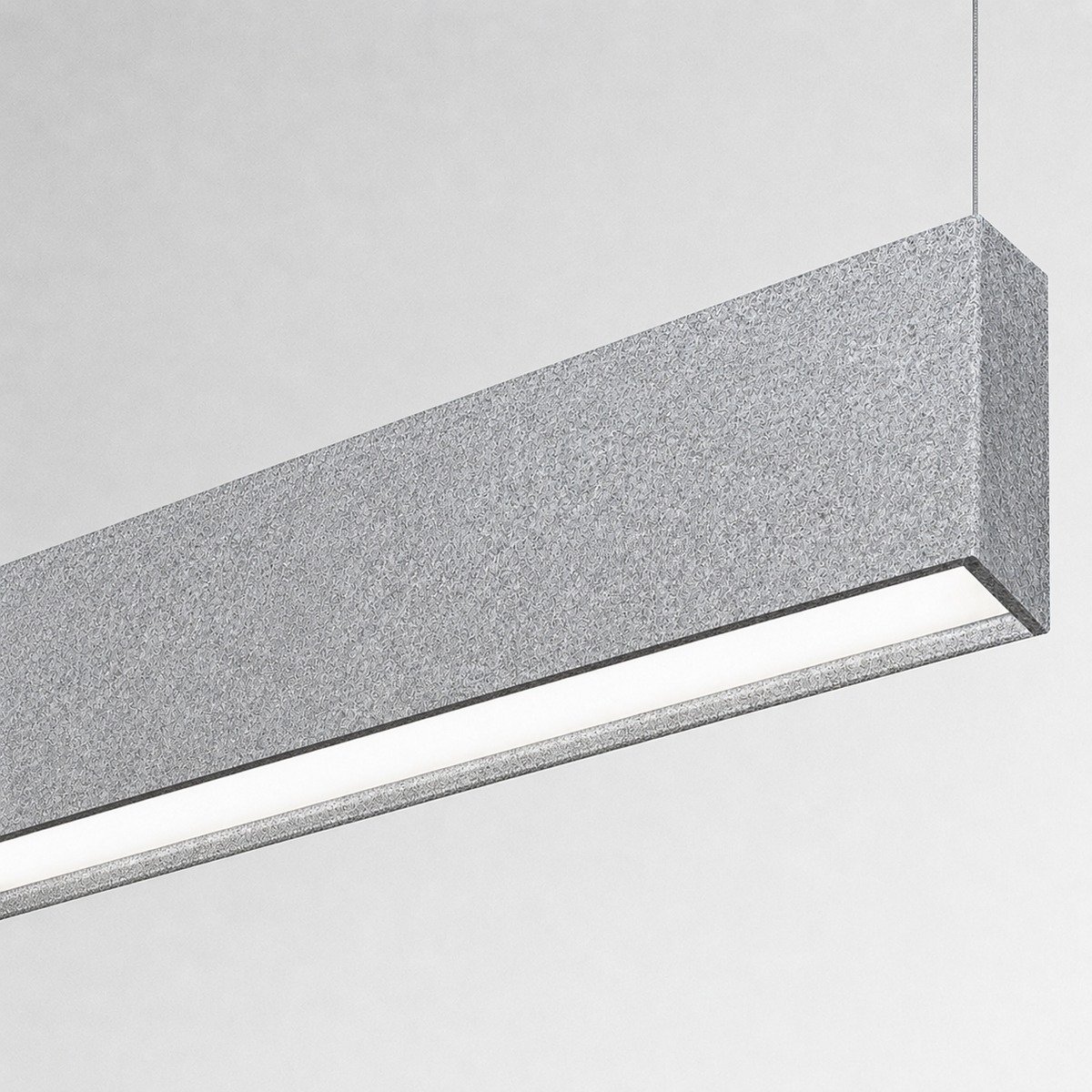

CUBE1-NRC LED Acoustic Linear Light
NRC 0.90-rated acoustic felt to reduce reverberation in busy interiors. The CUBE1-NRC combines direct LED illumination with sound-absorbing design, providing efficient lighting and effective noise control for open offices, lobbies, retail, hospitality, and reception areas.
Inventory and Lead Time
Contact us for availability and pricing information.
Need assistance?
Call us at
(866) 471-7711
CUBE1-NRC LED Acoustic Linear Light
CUBE1-NRC LED Acoustic Linear Light
Contact for Pricing
Downloads & Resources
Product Overview
Features
- Sound absorbing linear direct acoustic LED luminaire.
- Material rated for NRC (Noise Reduction Coefficient) of 0.90.
- Acoustic felt is 100% virgin polyester, 0.5" thick.
- 45 degree deburr design standard; flushed design available upon request.
- Available in 6" to 24" nominal housing heights in 2" increments.
- Wide range of felt colors: 2 standard and 18 premium options.
Mounting
- Pendant mount.
LED
- High quality array LEDs, LM80 tested.
- Color Temperature: 2700/3000/3500/4000/5000K.
- Color Rendering Index: >80 (optional >90).
- Nominal Lamp Life: 100,000 hours.
- Reported L70: 60,000+ hours (55°C).
Electrical
- High power factor electronic driver, 120-277VAC input, 50/60Hz.
- Over voltage, surge, short circuit, and overload protection.
- Power Factor: >0.95 typical, THD <20%.
- 0-10V dimmable driver as standard, 1%-100% dimming.
- Operating temperature: -4°F (-20°C) to 122°F (50°C).
- UL924 Emergency Bypass Shunt Load Relay available.
Listing
- UL / cUL listed to UL 1598 and UL 8750.
- UL listed for dry & damp location.
- CEC Compliant EM available.
- Assembled in USA (optional).
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty (7 or 10 years optional).
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant: BAA/BABA/ARRA options available
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
