CLFP Clean Room Lay-In Light

A fully sealed CLFP LED Cleanroom Flat Panel is available in 1’x4’, 2’x2’, and 2’x4’ sizes and designed for recessed T-bar and drywall ceiling installations. A welded aluminum housing with front and back sealing prevents water ingress, while a standard IK03 impact-resistant polycarbonate diffuser delivers smooth, uniform illumination. Optional tempered glass or antibacterial polycarbonate lenses are available for enhanced chemical resistance and hygiene control.

Features:

• Fully welded construction with front and back sealing to prevent water ingress.

• Standard IK03 frosted polycarbonate diffuser; optional IK08 tempered glass or antibacterial polycarbonate lens.

• Aluminum housing with white powder-coated finish.

• Anti-bacterial coating for hygienic environments.

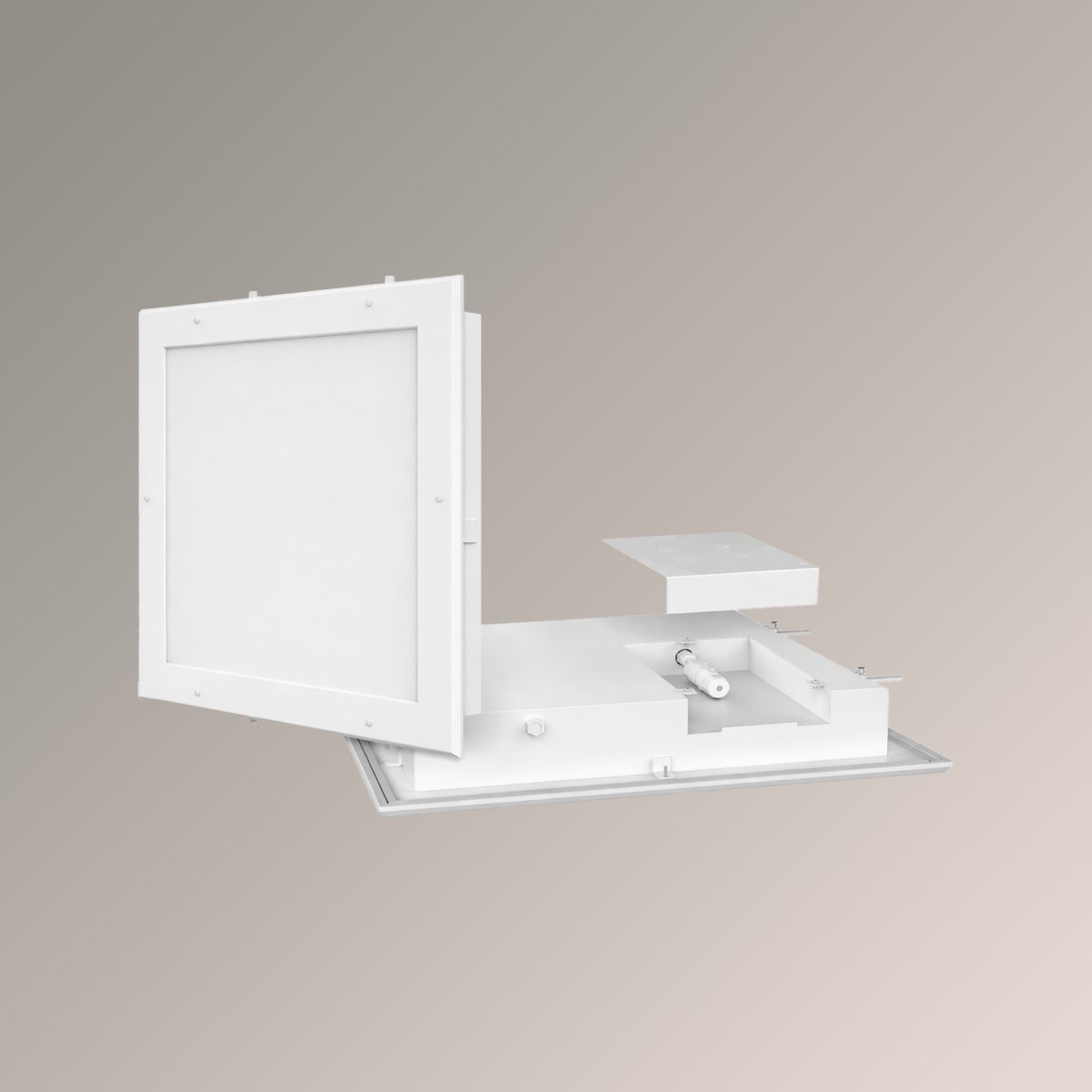

• Serviceable front cover plate allows removal of light source plate and driver for maintenance.

• No hazardous materials in fixture.

Mounting:

• Recessed T-bar and drywall ceiling installation (standard).

• Suitable for cleanroom grid systems.

LED:

• Lumen efficacy ≥125 lm/W (model dependent).

• Field adjustable wattage.

• Selectable color temperature: 3500K / 4000K / 5000K.

• CRI >80.

• Beam angle: 110°.

• L80 ≥50,000 hours.

Electrical:

• 0–10V dimming, down to 10% (standard).

• Universal 120–277V, 50/60 Hz.

• Operating temperature: -13°F to 104°F (-25°C to 40°C).

Listing:

• UL 1598 listed, suitable for wet locations, Type IC.

• UL 8750 LED equipment.

• DLC listed (select models).

• IP65 rated.

• ISO3 rated.

• NSF rated.

• ROHS compliant.

• 5-year limited warranty.

Designed for dust-free plants, laboratories, hospitals, pharmaceutical facilities, and other controlled environments requiring sealed, cleanroom-compatible luminaires.
