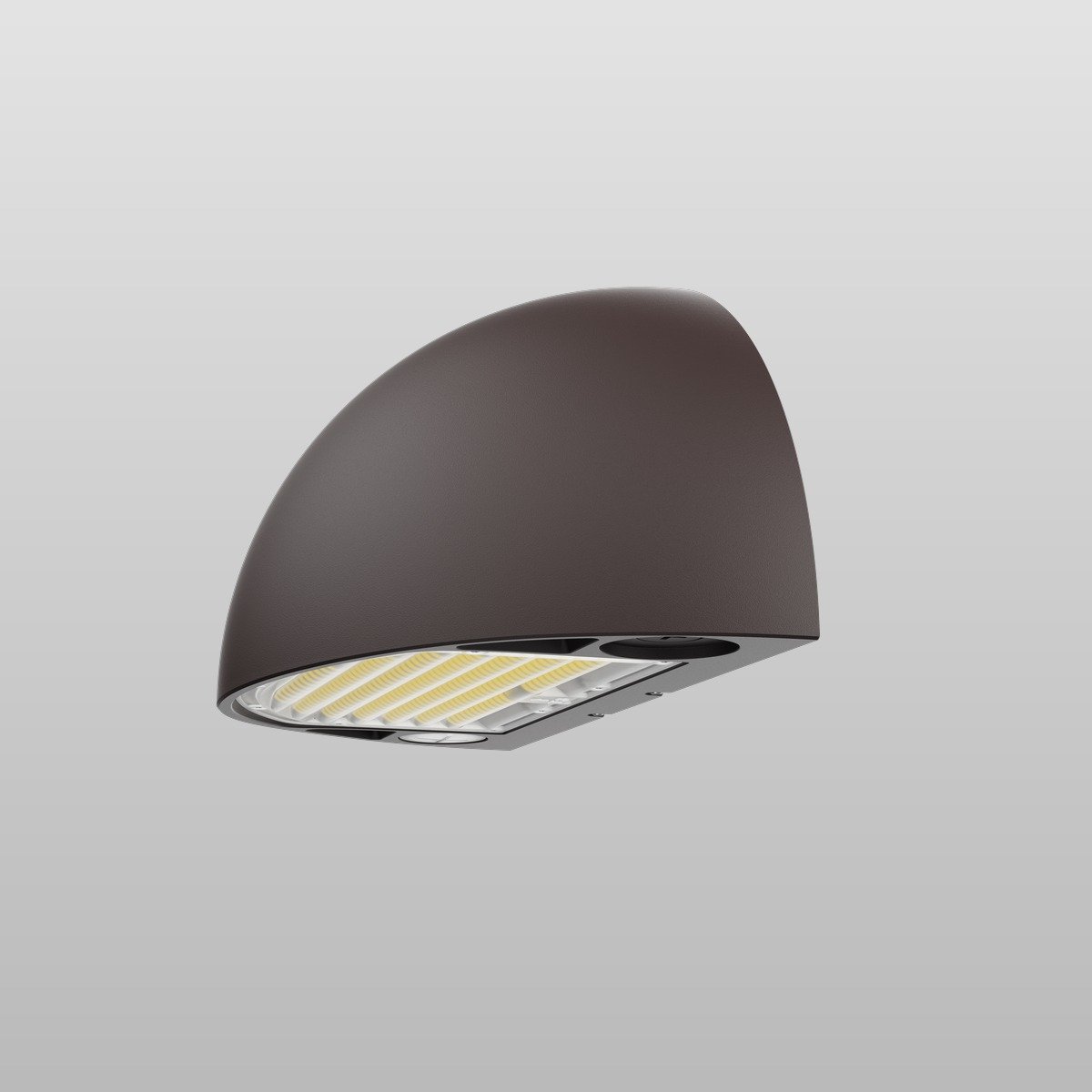

ALW-Q LED Architectural Wall Mount Quartersphere
The quartersphere wall sconce down light is ideal for walkways, building exterior walls, parking areas, entrances, underpasses, loading docks and recreation areas.
Inventory and Lead Time
Contact us for availability and pricing information.
Need assistance?
Call us at
(866) 471-7711
ALW-Q LED Architectural Wall Mount Quartersphere
ALW-Q LED Architectural Wall Mount Quartersphere
Contact for Pricing
Downloads & Resources
Product Overview
Features
- 13" full cut-off LED wall pack.
- ADC12 aluminum die-casting housing for excellent heat dissipation.
- Architectural dark bronze finish standard.
- Field adjustable wattage and CCT.
- Automated dusk to dawn photocell functionality. Field adjustable on/off switch.
- Optional microwave motion sensor, and EM.
Distribution
- Type III (std.)
- Polycarbonate lens.
Mounting
- Wall mount (quick mount plate included).
- Easily installed on recessed junction boxes or direct mounts to the wall with feed thru conduit access.
LED
- CRI >80.
- Field adjustable wattage: 40/50/60/80W.
- Field adjustable color temperature: 3000/4000/5000K.
- Lumen efficacy: up to 150 lm/W.
- L70 @ 50,000 hrs.
Electrical
- Input Voltage: 120V–277V, 50/60Hz standard.
- PF ≥ 0.90, THD < 20%.
- Operating temperature: -40°F (-40°C) to 122°F (50°C) standard; 32°F (0°C) to 104°F (40°C) with EM.
- 0-10V dimming standard.
- L-N 6kV, L-N-P 6kV surge protection (std.)
Listing
- UL listed for wet location.
- DLC Premium listed.
- IP65 rated.
- 5 years limited warranty.
- BAA compliant (optional).
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant: BAA/BABA/ARRA options available
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
